PAUT.Tech Dual Bar Scanner | Dual-Rail PAUT & TOFD Weld Inspection Scanner

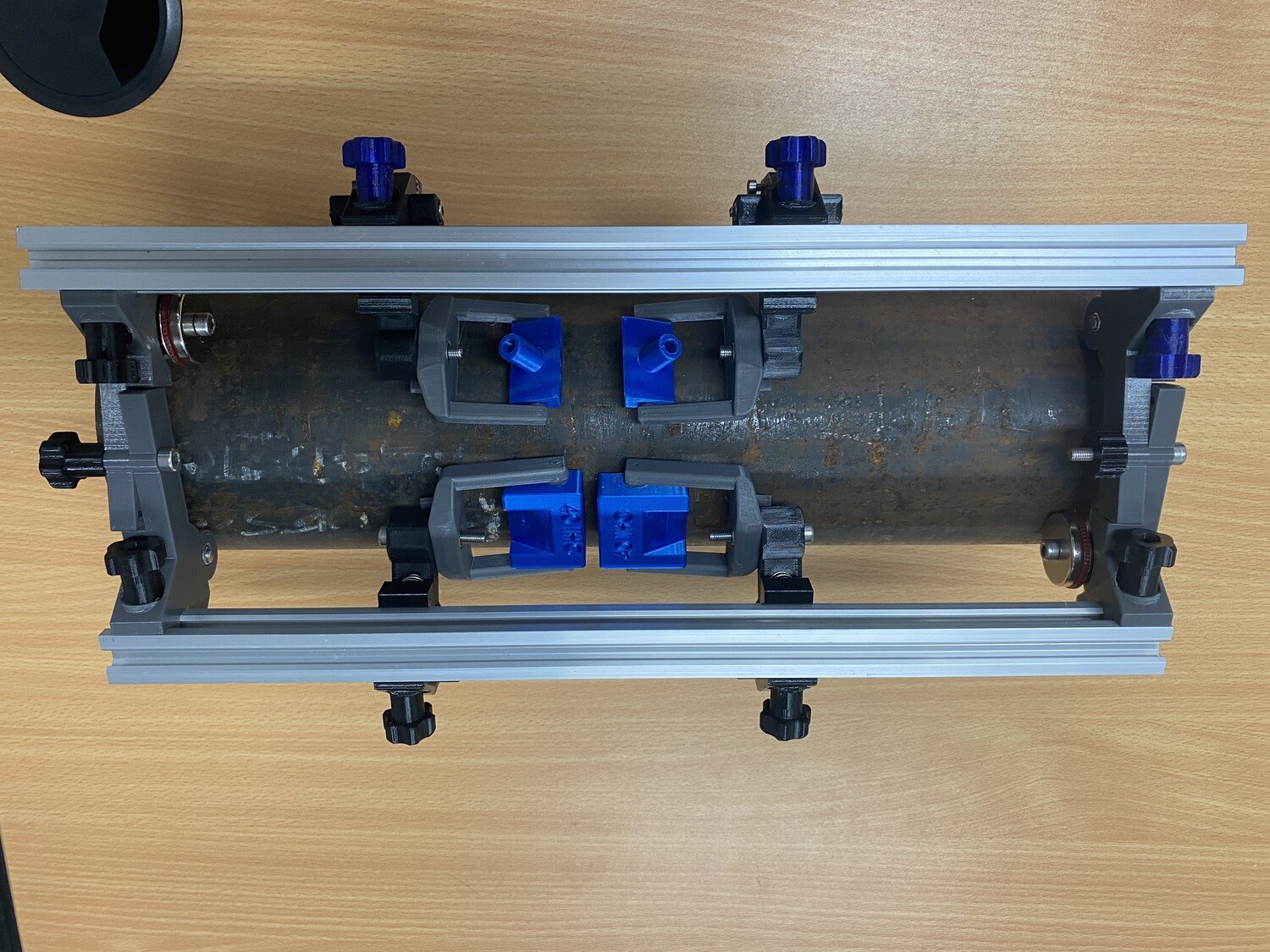

The PAUT.Tech Dual Bar Scanner is a heavy-duty, precision-engineered encoded weld inspection scanner designed for Phased Array Ultrasonic Testing (PAUT) and Time of Flight Diffraction (TOFD) applications. Featuring a dual-rail design, it provides exceptional stability and accurate probe positioning for inspections on DN100 (4-inch) pipe through to flat plate.

Designed for professional NDT technicians and inspection companies, the Dual Bar Scanner is ideal for pipeline fabrication, pressure vessel inspections, structural steel, and general industrial weld testing where repeatable, high-quality encoded data is essential.

Key Features

• Suitable for DN100 (4-inch) pipe through to flat plate inspections
• Dual 20 mm V-Slot rails with a 400 mm scanning width for maximum stability
• Four adjustable probe holders fitted with magnetic wheels for smooth, accurate scanning
• Wedge forks designed to suit 40 mm PAUT wedges and 31.7 mm TOFD wedges
• Optional Phoenix-style wedge forks available on request
• Mini Wheel encoder mounting provision (encoder not included)
• Rugged, lightweight construction for both workshop and field use
• Quick setup with precise, repeatable encoded scanning

Applications

The PAUT.Tech Dual Bar Scanner is ideal for:

• PAUT weld inspections
• TOFD weld inspections
• Pipeline construction and fabrication
• Pressure vessel inspections
• Structural steel weld testing
• Pipe spool inspections
• Fabrication quality assurance
• Oil & Gas inspection
• Mining and processing facilities
• Power generation and renewable energy projects

Fully Customisable

Every inspection application has unique requirements. The PAUT.Tech Dual Bar Scanner can be supplied in virtually any configuration to suit your inspection procedures and equipment.

Customisation options include:

• Scanner width and rail length
• Probe holder configurations
• Wedge compatibility
• Encoder mounting options
• Application-specific accessories
• Custom-built solutions for specialised inspection requirements

Whether you're inspecting circumferential welds, longitudinal seams, or flat plate welds, the PAUT.Tech Dual Bar Scanner delivers the stability, flexibility, and precision required for reliable encoded ultrasonic inspection.
