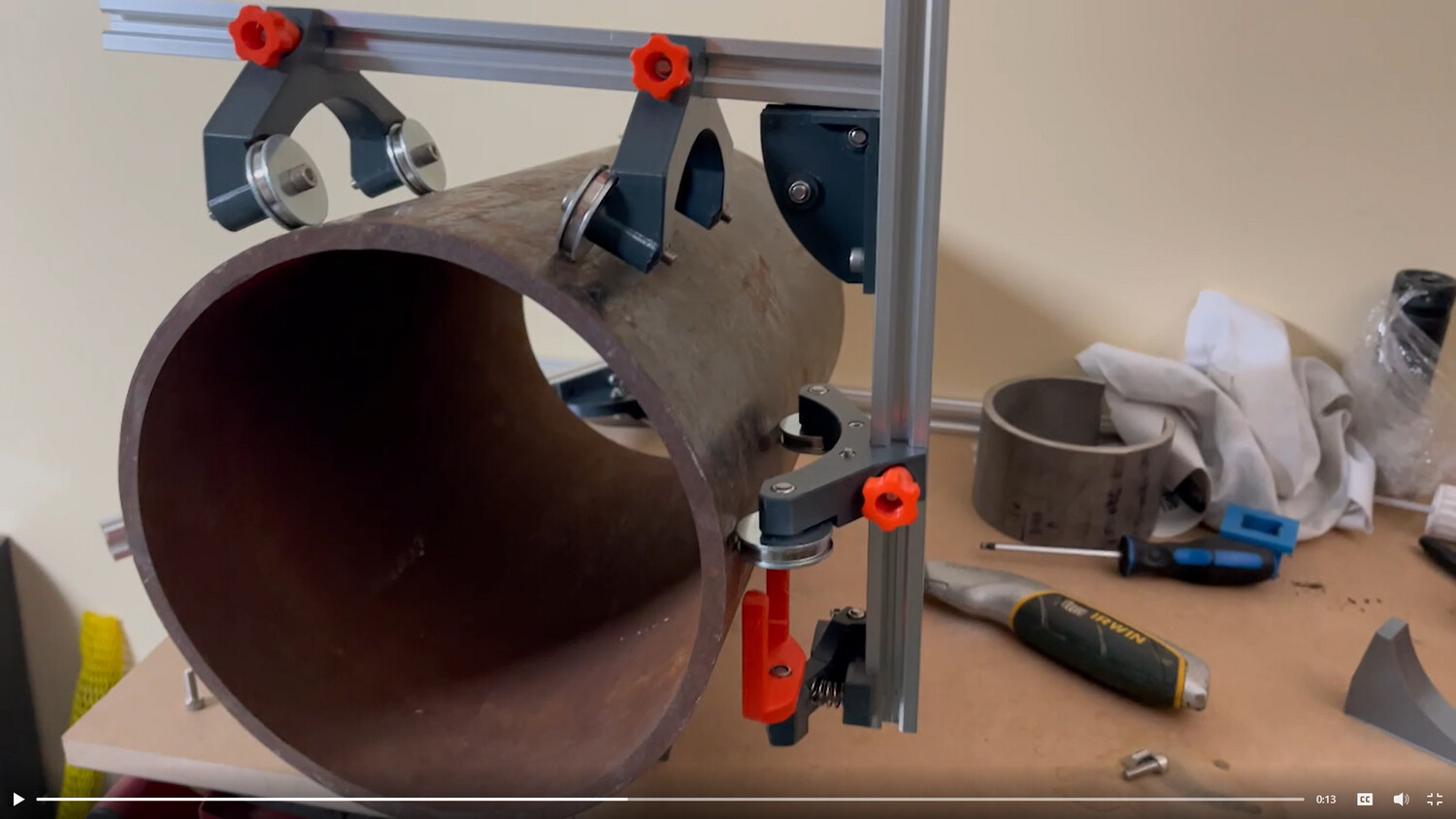

Custom CUPS Scanner | Corrosion Under Pipe Support (CUPS) PAUT Inspection Scanner

The PAUT.Tech Custom CUPS Scanner is a purpose-built scanning system designed for the inspection of Corrosion Under Pipe Supports (CUPS) and other restricted-access corrosion applications. Engineered to deliver accurate, repeatable encoded ultrasonic inspections, the scanner provides stable probe guidance in areas where conventional scanners cannot operate effectively.

Designed for professional NDT technicians, the system is compatible with Mini Wheel encoders and 40 mm wide PAUT wedges, making it an ideal solution for corrosion mapping and asset integrity inspections across the oil & gas, mining, petrochemical, and power generation industries.

Key Features

• Specifically designed for Corrosion Under Pipe Support (CUPS) inspections
• Suitable for 100 mm pipe diameter and larger
• Compatible with 40 mm wide PAUT wedges
• Designed to mount a Mini Wheel encoder (encoder not included)
• Lightweight, durable construction for field inspections
• Stable and repeatable encoded scanning in confined and difficult-to-access locations
• Custom engineered to suit individual inspection requirements

Applications

The Custom CUPS Scanner is ideal for:

• Corrosion Under Pipe Support (CUPS) inspections
• Localised corrosion mapping
• Pipe support inspections
• Asset integrity assessments
• In-service piping inspections
• Refinery and petrochemical facilities
• Oil & Gas production assets
• Mining and mineral processing plants
• Power generation facilities

Custom Built for Your Inspection

Every application is different. The PAUT.Tech Custom CUPS Scanner is manufactured to suit your inspection requirements, including:

• Pipe diameters from 100 mm to 400 mm and larger
• Scanner geometry
• Probe and wedge configurations
• Encoder mounting arrangements
• Application-specific accessories

If you have a unique inspection challenge, we can design and manufacture a custom scanner to suit your equipment, inspection procedure, and operating environment.

Please note: Mini Wheel encoder is not included.
