PAUT.Tech Mini Wheel Encoder | PAUT & TOFD Encoder for Olympus OmniScan

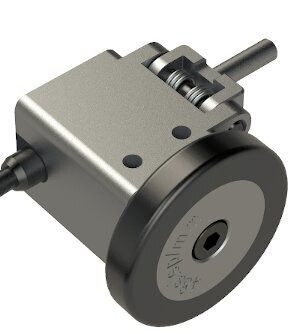

The PAUT.Tech Mini Wheel Encoder is a precision-engineered encoder designed for Phased Array Ultrasonic Testing (PAUT) and Time of Flight Diffraction (TOFD) inspections. Delivering 12 steps per millimetre of encoder resolution, it provides accurate position tracking for reliable encoded ultrasonic data acquisition.

Designed for seamless compatibility with Olympus OmniScan instruments and other systems using a 16-pin LEMO circular connector, the Mini Wheel Encoder is ideal for weld inspections, corrosion mapping, and general encoded ultrasonic testing.

Key Features

• Precision 12 steps/mm encoder resolution
• Compatible with Olympus OmniScan and other instruments using a 16-pin LEMO round connector
• Supplied with a durable mounting bracket for easy installation
• Includes a Calibration Certificate for confidence in measurement accuracy
• 2.5-metre cable for flexibility in field and workshop inspections
• Lightweight, compact, and rugged design
• Suitable for both manual scanners and custom inspection systems

Applications

The PAUT.Tech Mini Wheel Encoder is ideal for:

• PAUT weld inspections
• TOFD inspections
• Corrosion mapping
• Pipeline inspections
• Pressure vessel inspections
• Storage tank inspections
• Fabrication quality control
• Asset integrity inspections
• Oil & Gas, mining, power generation, and industrial maintenance

Built for Reliable Encoded Inspection

Engineered for demanding industrial environments, the PAUT.Tech Mini Wheel Encoder delivers smooth, repeatable position feedback to ensure accurate encoded ultrasonic inspections. Whether integrated into a standard scanner or a custom-built inspection system, it provides the precision and reliability required by professional NDT technicians.

Supplied complete with:

• Mini Wheel Encoder
• Mounting Bracket
• 2.5 m Connection Cable
• Calibration Certificate
