PAUT.Tech Modular Scanner System | Build Your Own PAUT & TOFD Scanner

The PAUT.Tech Modular Scanner System gives you the flexibility to build a scanner that perfectly suits your inspection application. Designed around a comprehensive range of interchangeable components, the system allows you to configure scanners for pipe, plate, weld inspection, and corrosion mapping without the need for a completely custom build.

Whether you're inspecting pipelines, pressure vessels, storage tanks, or structural steel, the modular design enables you to create a scanner that matches your inspection procedure, probe configuration, and operating environment.

Available Scanner Configurations

Using the PAUT.Tech modular components, you can build a variety of scanner systems, including:

• Flat plate bar scanner
• Long seam pipe scanner
• Three-wheel single-sided scanner
• Four-wheel single-sided scanner
• Pipe clamp scanners
• Custom scanner configurations for specialised applications

Key Features

• Modular design allows complete scanner customisation
• Compatible with 40 mm IHC-style PAUT wedges
• Designed to suit SA10 standard 40 mm wedges
• Compatible with Mini Wheel encoders (encoder not included)
• Spring-loaded clamping arms provide secure positioning on pipe
• One-handed operation for fast setup and efficient inspections
• Manufactured from durable UV-resistant PET
• Lightweight, robust construction for workshop and field use
• Interchangeable components for maximum flexibility

Applications

The PAUT.Tech Modular Scanner System is ideal for:

• PAUT weld inspections
• TOFD weld inspections
• Corrosion mapping
• Pipeline inspections
• Pressure vessel inspections
• Storage tank inspections
• Flat plate inspections
• Longitudinal and circumferential weld inspections
• Fabrication quality control
• Oil & Gas, mining, petrochemical, power generation, and renewable energy industries

Build the Scanner You Need

Every inspection challenge is different. Rather than adapting your inspection to suit the scanner, the PAUT.Tech Modular Scanner System allows you to configure the scanner to suit your application.

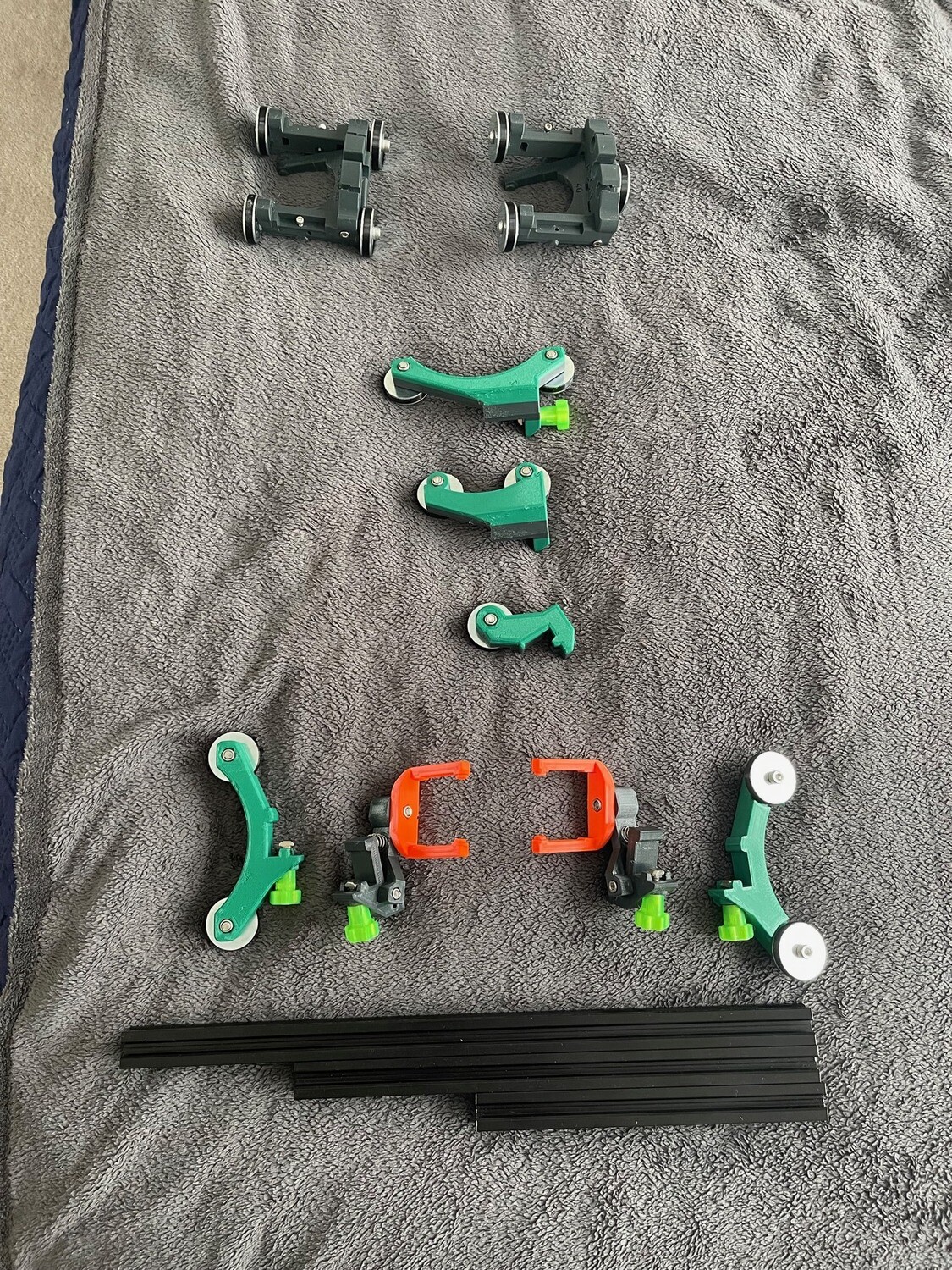

With interchangeable probe holders, scanner frames, clamping systems, and encoder mounting options, you can assemble a solution that delivers accurate, repeatable encoded inspections while reducing setup time and improving productivity.

Please note: Mini Wheel Encoder is not included. Additional custom configurations and accessories are available on request.
