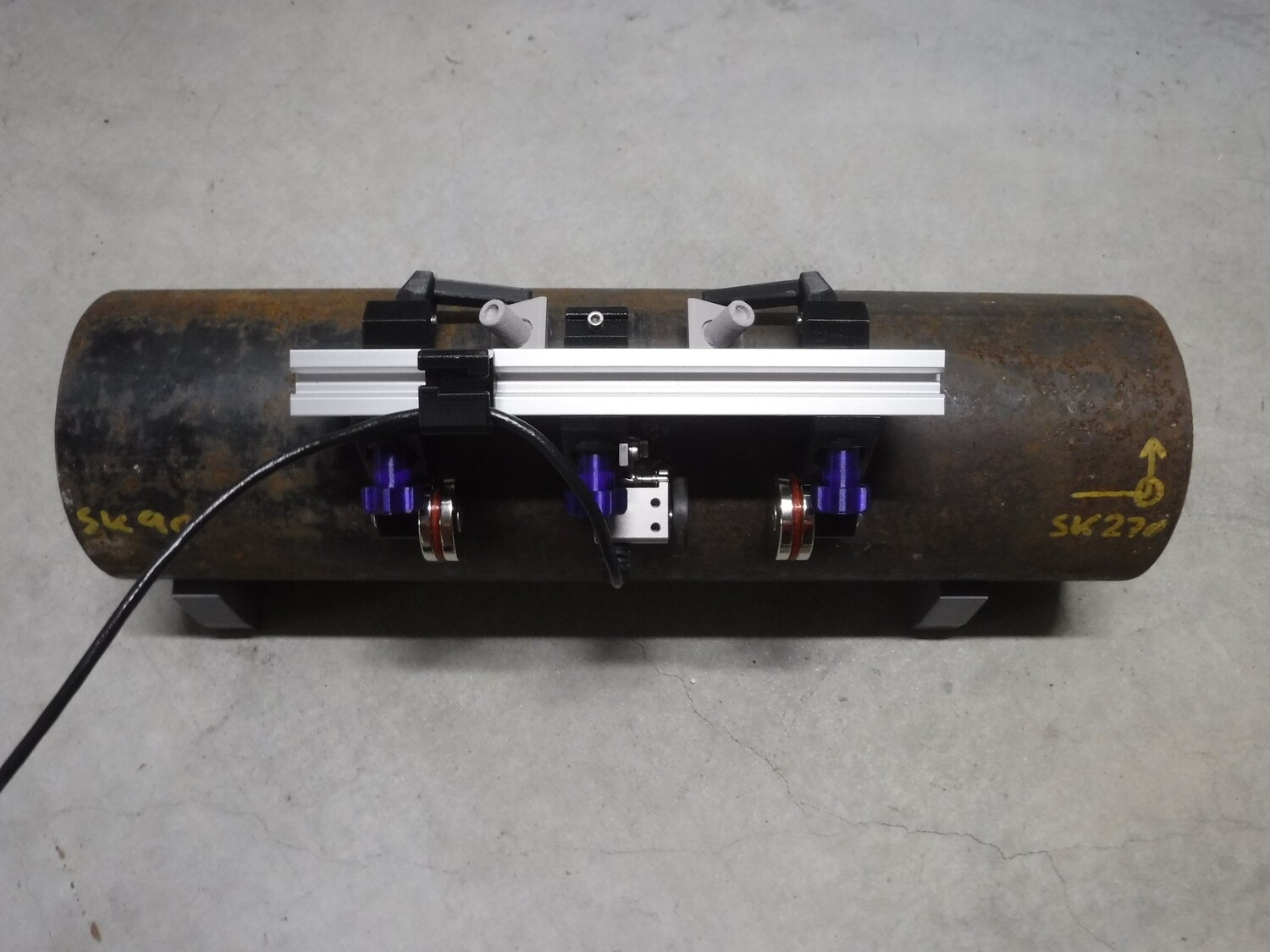

PAUT.Tech TOFD Scanner | Compact TOFD Weld Inspection Scanner for Pipe & Plate

The PAUT.Tech TOFD Scanner is a compact, precision-engineered Time of Flight Diffraction (TOFD) scanner designed for accurate encoded weld inspections in confined and difficult-to-access areas. Its small footprint makes it particularly well suited for inspecting welds located close to elbows, flanges, nozzles, and other pipe fittings where conventional scanners may not fit.

Designed for professional NDT technicians, the scanner is suitable for flat plate and pipe diameters from 100 mm OD and larger, delivering smooth, stable probe movement for reliable and repeatable inspection results.

Key Features

• Compact design for TOFD weld inspections in restricted access areas
• Ideal for welds adjacent to elbows, flanges, and fittings
• Suitable for flat plate and 100 mm OD pipe and larger
• 200 mm wide 20 mm V-Slot bar for rigid, stable scanning
• High-traction magnetic wheels for secure positioning on ferromagnetic surfaces
• Mini Wheel encoder mounting provision (encoder not included)
• Wedge forks designed to suit 30 mm and 31.7 mm TOFD wedges
• Optional Phoenix-style TOFD wedge forks available
• Lightweight, durable construction for field and workshop inspections

Applications

The PAUT.Tech TOFD Scanner is ideal for:

• TOFD weld inspections
• Circumferential weld inspections
• Pressure vessel inspections
• Pipeline fabrication and maintenance
• Pipe spool inspections
• Structural steel fabrication
• Storage tank inspections
• Oil & Gas facilities
• Mining and mineral processing
• Petrochemical and power generation industries

Built for Professional TOFD Inspection

Engineered for accuracy and ease of use, the PAUT.Tech TOFD Scanner provides stable probe alignment and smooth encoded scanning, even in areas with limited access. Its compact design reduces setup time while delivering the precision and repeatability required for high-quality TOFD inspections.

For specialised applications, the scanner can be customised with alternative wedge forks and configurations to suit your inspection requirements.

Please note: Mini Wheel Encoder is not included.
