PAUT.Tech USM100 Pro Encoder Adapter Cable | Single & Dual Encoder Interface for Encoded UT Inspections

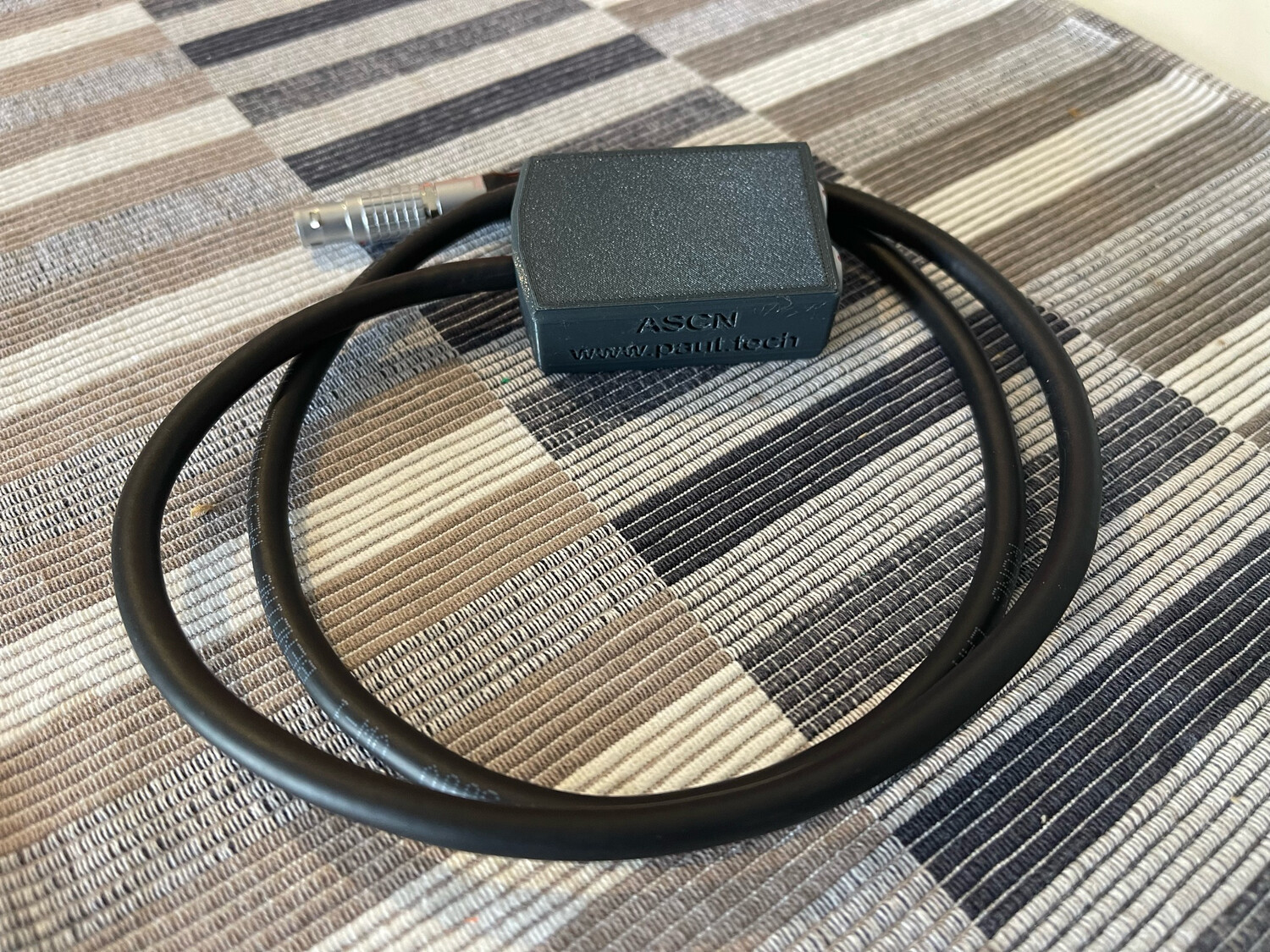

The PAUT.Tech USM100 Pro Encoder Adapter Cable is a purpose-built interface cable that enables the connection of one or two 16-pin LEMO encoders to the Waygate USM100 Pro Ultrasonic Flaw Detector. Designed for professional ultrasonic inspection applications, it expands the capabilities of the USM100 Pro by supporting encoded B-Scan inspections and X/Y corrosion mapping.

Whether you're upgrading an existing encoder or building a full corrosion mapping system, this adapter provides a simple and reliable solution for accurate encoded data acquisition.

Key Features

• Connects one or two 16-pin LEMO encoders to the Waygate USM100 Pro
• Enables encoded B-Scan inspections
• Supports dual X/Y encoder operation for full-coverage corrosion mapping
• Compatible with existing 16-pin LEMO encoder systems
• Durable, industrial-grade construction for field and workshop use
• Professionally assembled and tested for reliable performance

Applications

Encoded B-Scan Inspection

Connect a single 16-pin LEMO encoder to your USM100 Pro to perform accurate encoded B-Scan inspections for:

• Weld inspections
• Corrosion monitoring
• Thickness profiling
• Pipeline inspections
• Pressure vessel inspections

X/Y Corrosion Mapping

Connect two encoders simultaneously to create a complete X/Y encoded corrosion mapping system, allowing full surface coverage using a paintbrush-style scanning technique. This provides detailed thickness mapping for rapid identification and evaluation of corrosion across large inspection areas.

Ideal for:

• Corrosion mapping
• Storage tank inspections
• Pressure vessel inspections
• Pipework inspections
• Asset integrity programs
• Oil & Gas, mining, petrochemical, and power generation industries

Made to Order

Each PAUT.Tech USM100 Pro Encoder Adapter Cable is manufactured to order to ensure compatibility with your equipment and inspection requirements.

Please note: As this is a custom-built product, manufacturing and delivery lead times apply. Contact us to discuss your encoder configuration and application before ordering.
