PAUT.Tech Magnetic Wall Crawler | Remote-Controlled UT & PAUT Inspection Crawler

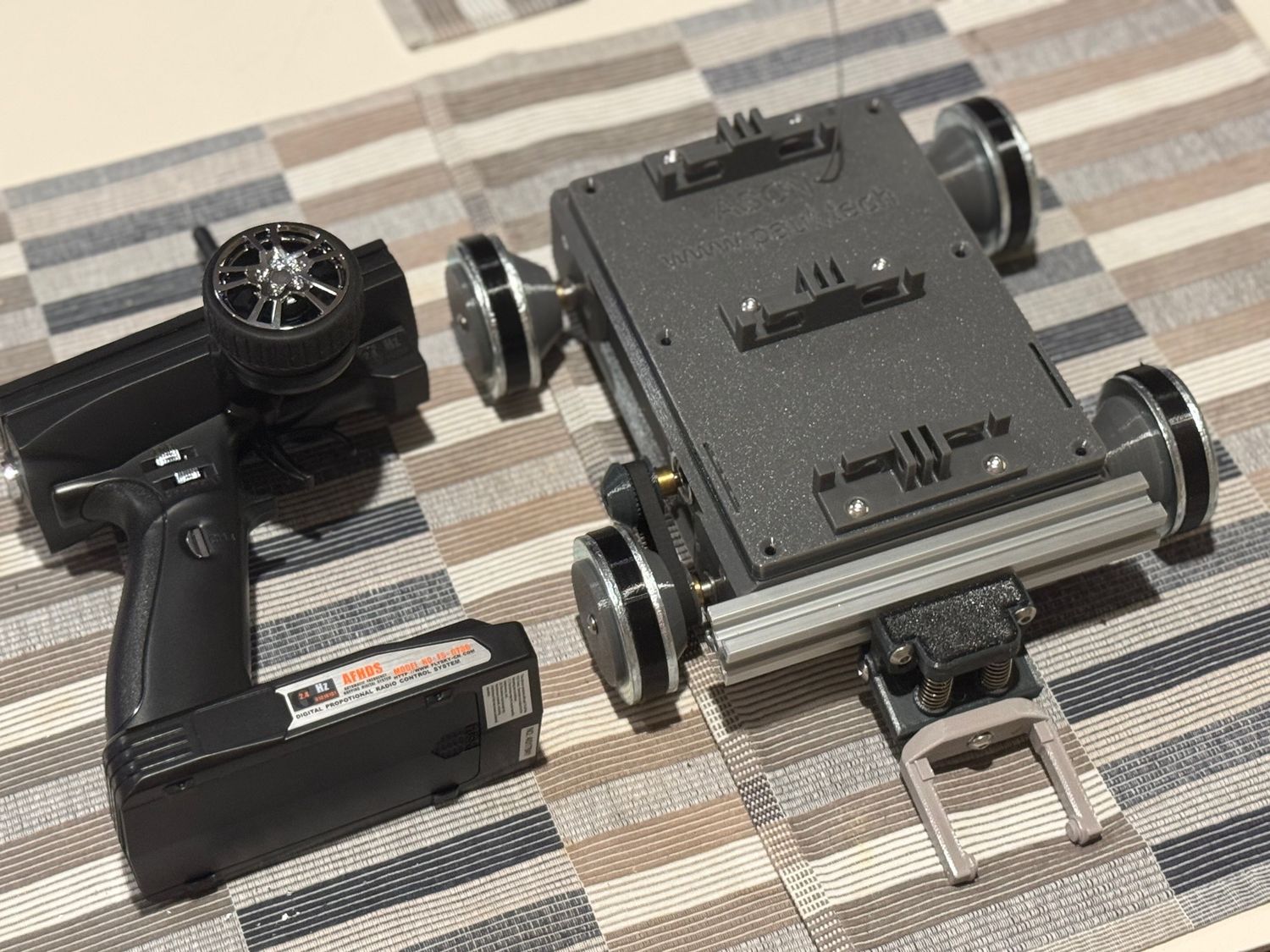

The PAUT.Tech Magnetic Wall Crawler is a rugged, remote-controlled inspection platform designed for Ultrasonic Thickness Testing (UT), Phased Array Ultrasonic Testing (PAUT), and visual inspections of storage tanks, pressure vessels, ship hulls, and other ferromagnetic structures. By eliminating the need for inspectors to access vertical surfaces directly, the crawler improves safety, increases productivity, and delivers high-quality inspection data.

Featuring a powerful magnetic drive system and precision scanning platform, the crawler provides smooth, stable movement across steel surfaces for accurate thickness measurements, encoded B-Scan inspections, and corrosion mapping.

Key Features

• Remote-controlled magnetic wall crawler for steel structures
• Designed for Ultrasonic Thickness (UT) and PAUT inspections
• Ideal for storage tanks, pressure vessels, pipelines, and ship structures
• Dual 20 mm V-Slot rails with a 200 mm scanning platform
• Probe holder compatible with 40 mm PAUT wedges
• Custom probe holder for Ultrasonic Thickness (UT) probes
• Integrated B-Scan encoder for encoded inspections
• Mounting point for a GoPro® or compatible action camera for visual inspections
• Robust magnetic wheel drive system for reliable vertical and overhead operation
• Lightweight, modular construction for easy maintenance and transport

Applications

The PAUT.Tech Magnetic Wall Crawler is ideal for:

• Storage tank shell inspections
• Pressure vessel inspections
• Ultrasonic thickness surveys
• Corrosion mapping
• Ship hull inspections
• Pipeline inspections
• Structural steel inspections
• Asset integrity assessments
• Oil & Gas facilities
• Mining and mineral processing plants
• Petrochemical and power generation industries

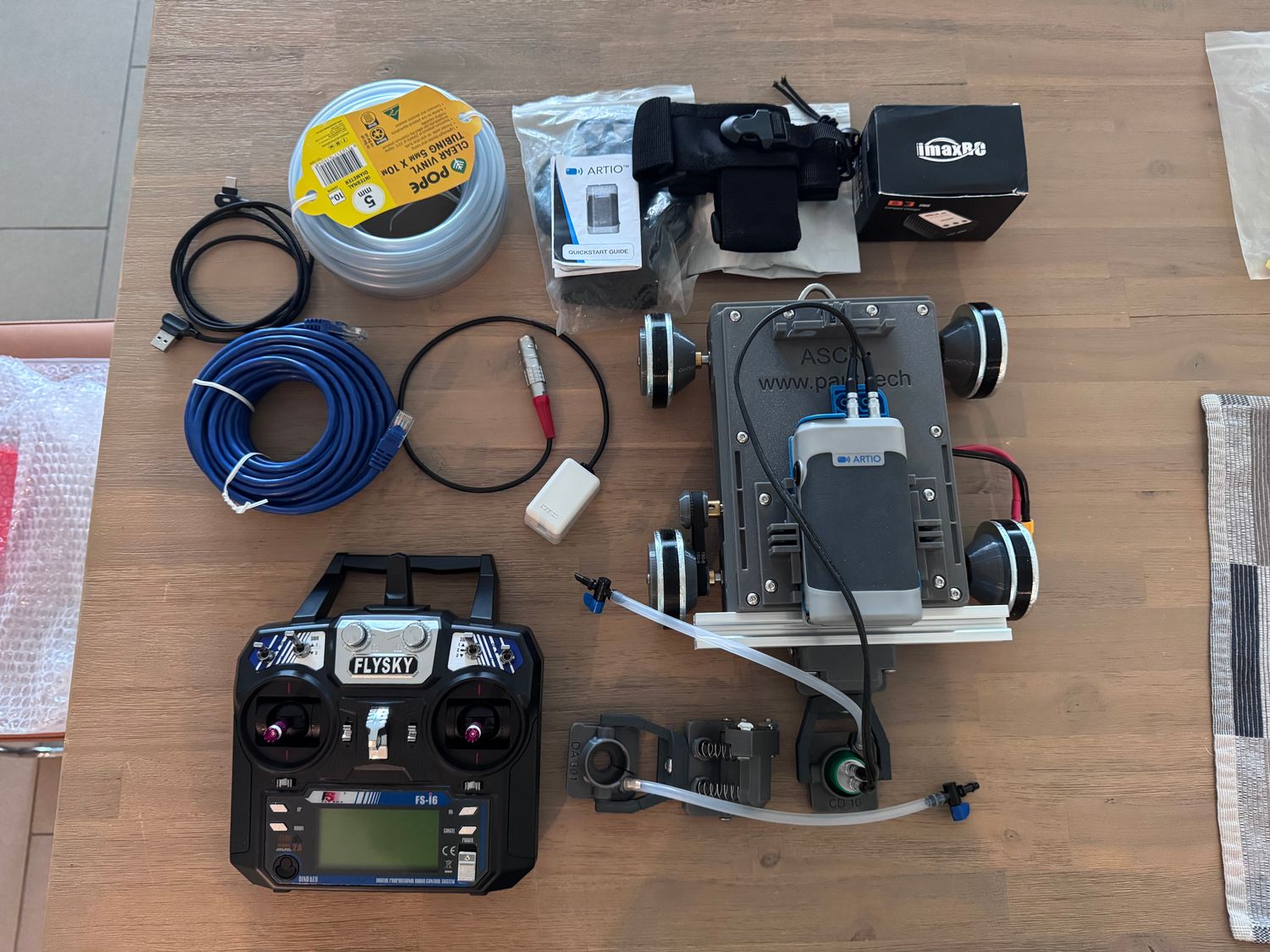

Supplied Complete With

For customers within Australia, the crawler is supplied complete with:

• Remote controller
• Rechargeable battery
• Integrated B-Scan encoder
• PAUT probe holder
• UT probe holder

Custom Built for Your Inspection

Every inspection application is unique. The PAUT.Tech Magnetic Wall Crawler is built to order and can be fully customised to suit your inspection equipment and operational requirements.

Customisation options include:

• Scanner size and rail length
• Probe holder configurations
• PAUT, TOFD, or UT probe compatibility
• Camera mounting solutions
• Encoder configurations
• Customer-specific accessories and attachments

Whether performing routine thickness monitoring, corrosion mapping, or advanced encoded inspections, the PAUT.Tech Magnetic Wall Crawler provides a safe, efficient, and highly adaptable solution for professional NDT technicians.

Please note: This is a custom-built product. Fabrication and delivery lead times apply. Custom configurations are available on request.
