Surface contact for ultrasonic scanners is often treated as a mechanical detail. On site, it can decide whether a scan produces reliable, repeatable data or a file full of coupling loss, encoder drift and areas that need to be rescanned.

A scanner does not need to look expensive to work well. It does need to hold the probe in the right position, maintain sensible pressure, travel predictably and suit the surface in front of it. That changes with every job: a dressed plate weld, a painted tank shell, a small-bore pipe and a corroded structural member do not ask the same thing of the scanner.

What surface contact actually controls

Good contact is about more than keeping a wedge on the component. It affects acoustic coupling, probe orientation, scan stability and position accuracy at the same time. If one of those variables moves during the scan, the inspection result can become difficult to trust.

For PAUT, the wedge needs consistent contact so the sound path and refracted angle remain as intended. Small changes in pressure or tilt can alter amplitude response and introduce inconsistent coupling. On a weld scan, that may make a geometric indication harder to separate from a genuine reflector.

For ToFD, consistent probe separation and stable contact are equally critical. A scanner that rocks across a weld cap, catches on spatter or rides unevenly over surface scale can affect lateral wave quality and positional confidence. The issue is not simply whether a signal appears. It is whether the encoded image represents the component accurately enough to support a call.

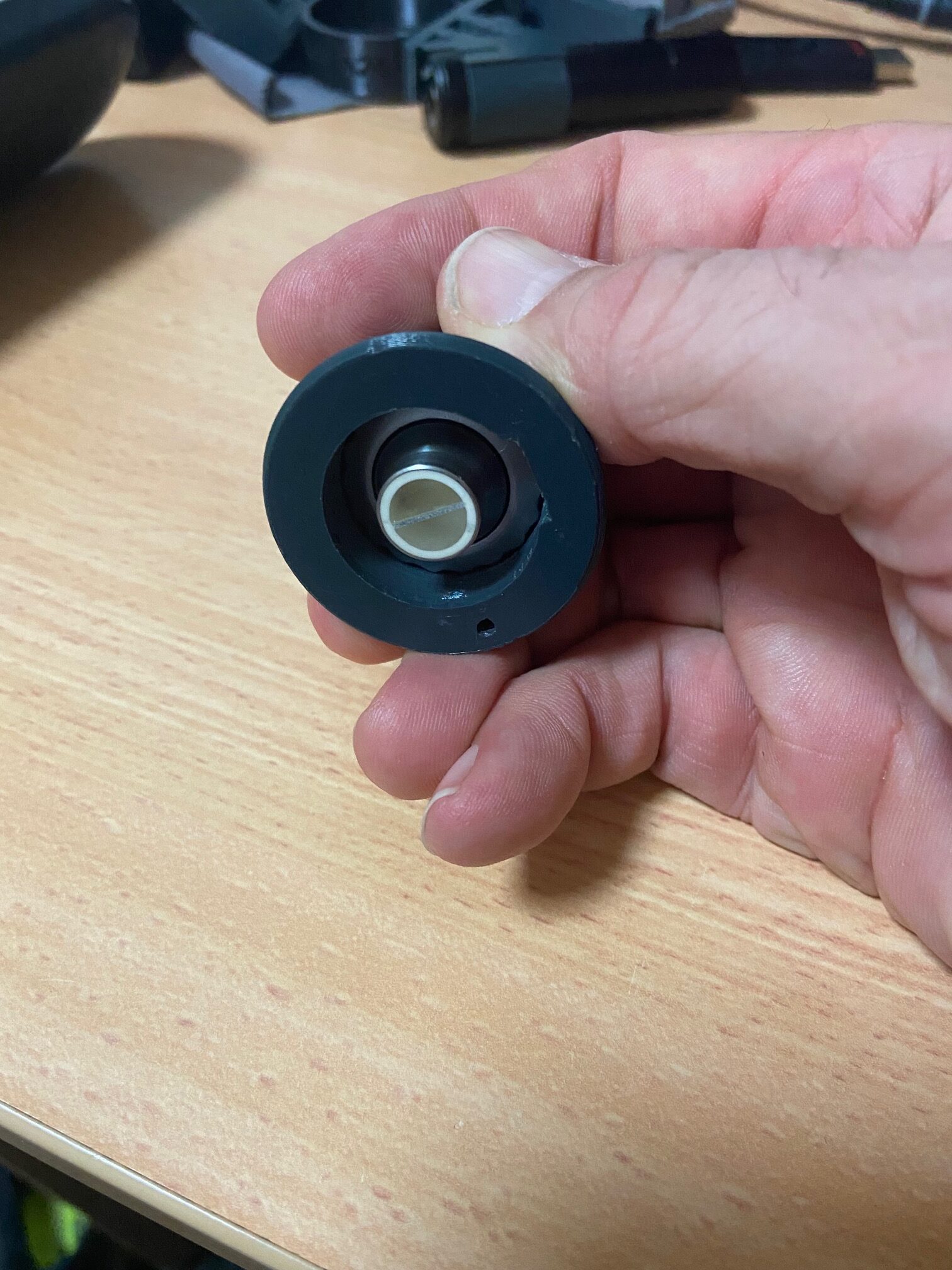

The mechanical path also matters. A scanner can have good probe contact but still produce poor data if its encoder wheel slips, lifts or changes effective circumference as it travels over a rough surface. Reliable encoded scanning requires both acoustic contact and controlled movement.

Match surface contact to the job, not the catalogue

The best contact method depends on component geometry, surface condition, scan length and the inspection procedure. A flat, clean plate allows a relatively simple arrangement. A heavily coated pipe in a difficult access area usually does not.

Flat plate and fabricated welds

On smooth plate, wheels or low-friction skids can provide stable travel with minimal effort. The key is keeping the probe holder rigid enough to prevent rotation while allowing enough compliance for minor variation in the surface. Too much spring pressure can wear wedges quickly and make manual travel inconsistent. Too little pressure can lead to intermittent coupling, particularly where the plate is not as flat as it first appears.

Weld caps deserve separate consideration. If the scanner is intended to travel beside the weld, its contact points need enough clearance to avoid climbing the cap or falling into a toe transition. A unit that tracks well on a test coupon may behave differently on a real fabrication with uneven dressing, tack remnants or local distortion.

Pipe and curved surfaces

Curvature changes everything. A contact arrangement that is stable on a large-diameter vessel can become unstable on smaller pipe because wheel spacing, probe alignment and the local tangent all change.

Pipe scanners commonly need a guided travel path, such as a chain, band or wrap-around arrangement, to keep the scanner square to the weld and maintain encoder engagement. The probe holders still need adjustment so wedges sit correctly on the pipe wall. Where diameter changes are frequent, modular hardware can reduce changeover time, but only if adjustments are repeatable and easy to lock down.

For corrosion mapping, a wheel-based scanner may be suitable on a reasonably smooth external surface. On pitted, scaled or heavily corroded steel, a skid or compliant contact system may provide more stable probe loading. There is no universal winner. Wheels reduce drag and support faster travel, while skids can better bridge local surface variation. The trade-off is increased friction and possible wear.

Coatings, scale and rough surfaces

Coatings and scale are not just coupling problems. They can change how the scanner sits and how the encoder moves. A thick coating may compress under a wheel, then recover, changing the scanner’s behaviour along the scan. Loose scale can lodge under a skid or wheel and create a temporary tilt.

Where surface preparation is permitted, removing loose material and creating a clear scan path is usually the most efficient solution. If preparation is limited, choose a contact arrangement that tolerates the condition without pretending it has disappeared. Wider contact points, guided travel and enough compliance to follow local variation can help, but they do not replace verification of coupling and encoded position.

Keep probe contact and scanner retention separate

A common mistake is assuming that a scanner held firmly to the component will automatically deliver good ultrasonic contact. Retention and coupling are related, but they are not the same thing.

Magnets, chains and clamps can keep a scanner from moving sideways or falling from a vertical surface. They do not guarantee that the wedge is loaded consistently. Likewise, a heavily sprung probe holder may force the wedge onto the surface but leave the scanner body free to wander.

A practical setup controls both functions. The scanner should be retained and guided in its intended path, while the probe holder applies consistent, adjustable pressure at the wedge. This is particularly relevant for vertical, overhead and circumferential work, where gravity and operator handling can introduce variables that are absent on a bench.

Encoder contact is part of data quality

When reviewing a scan, it is tempting to focus on the A-scan or image quality and overlook the encoded distance. Yet poor position data can create just as much trouble as poor coupling. If a wheel slips at the start of a scan, loses traction across a rough patch or lifts when passing a weld cap, feature location may no longer agree with the component.

Before committing to a production scan, check that the encoder count increases consistently through the full travel path. Run the scanner over a known distance where possible, then compare displayed travel with the actual measurement. Repeat the check after changing wheels, adjusting contact pressure or moving to a different surface condition.

For manual systems, operator technique remains part of the equation. Pulling a scanner too quickly, changing hand pressure halfway through a run or forcing it over an obstruction can affect both coupling and encoder performance. A well-designed scanner reduces the opportunity for error, but it cannot remove the need for controlled scanning practice.

A practical contact check before scanning

A short setup check is cheaper than explaining a questionable data set later. Before scanning, confirm four things:

• The wedge or probe face sits flush across the planned scan path and maintains coupling through local surface changes.
• The scanner cannot rotate, crab sideways or climb the weld profile during normal travel.
• The encoder stays engaged and reports a repeatable distance over a known length.
• Contact pressure is sufficient for stable signals without excessive drag, wedge wear or operator effort.

These checks should be repeated when the surface changes. A scanner that performs well on the first metre of cleaned steel may need adjustment when it reaches coating damage, a repair area or a section with heavier scale.

Design for repeatability and changeover

Inspection businesses often lose time because one scanner is constantly being rebuilt between pipe, plate, weld and corrosion jobs. The hardware may be capable of every task, but the setup time, missing components and repeated adjustments become the bottleneck.

Purpose-built scanners avoid some of that compromise. A plate scanner can remain configured for a common weld procedure while a separate pipe or corrosion scanner is ready for the next job. For smaller teams, modular accessories still have value, provided they allow quick, repeatable changes rather than a full reconfiguration each time.

This is the practical thinking behind PAUT.Tech scanner hardware: fit the contact method, probe arrangement and encoder setup to the work being performed, rather than making technicians force a single platform into every application.

Do not compensate for poor contact in software

Gating, smoothing and post-processing can make a display easier to read. They cannot restore data that was lost because the wedge lifted, coupling failed or the encoder slipped. If the scan looks inconsistent, stop and identify the mechanical cause before changing analysis settings.

The most useful scanner is not necessarily the one with the most adjustment points. It is the one that reaches the component, holds contact through the required scan path and produces repeatable data without turning setup into a major task. Get that interface right, and the rest of the inspection has a far better starting point.
